A Bespoke TypeScript Presentation

By Ville Heikkinen, Senior Developer Jan 15, 2020 • Read time 6 min

Have you ever live coded in front of an audience while doing a presentation? It tends to be a slightly awkward deal, with alt-tabbing, font size configuration, typos and at least one "demo effect". Performing for people is difficult enough without fiddling about with your tools and UI.

Having a slide show is handy to show some bullet points to your audience, but it would be nice to have them always visible. Some audience members will need more time than others to process the slide, and it must be a bit annoying if the presenter has already switched to the code before you get the gist.

Initial idea

I was thinking about these issues when I was planning our TypeScript trainings with my colleague Ville "tunkki" Heikkinen. TypeScript has some wonderful tooling with Visual Studio Code that we wanted to demonstrate. Showing compilation errors and Intellisense in real-time in the editor would be valuable when trying to answer the question "Why TypeScript?".

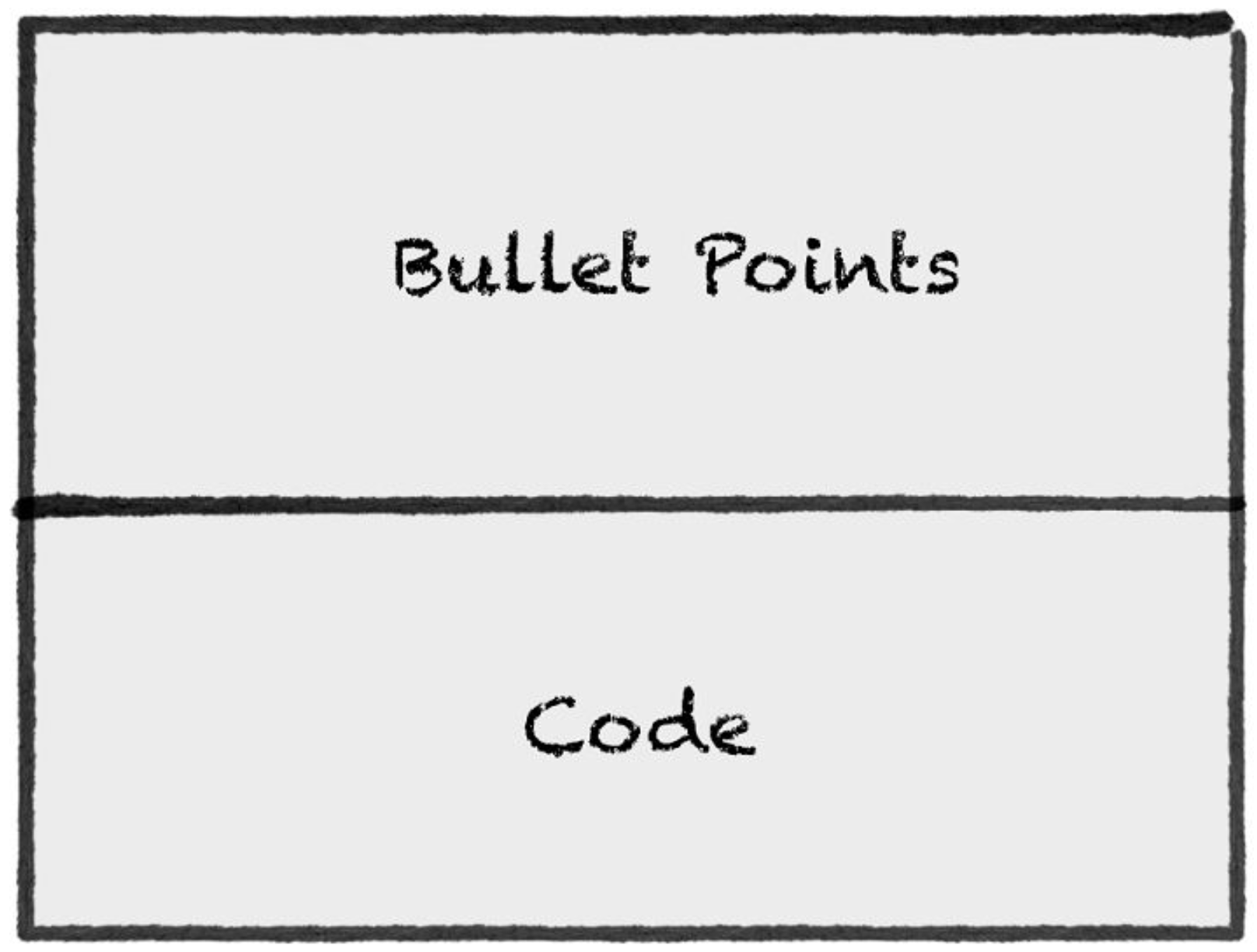

At first, I just wanted to eliminate alt-tabbing between the code and slides. It would be handy to have them both in the same tool. This lead me to investigate how to write a plugin for VS Code. The plugin would split the editor in two, showing the slides on top and the code at the bottom:

After a bit of research, the plugin approach didn't seem viable considering the time constraints. The VS Code plugin API did seem powerful, but complex. I wasn't sure how I'd create the slides, and link them together with the code. Having to manually keep slides and the code in sync would just create a new "alt-tab" problem. Trying to automate the process would most likely be possible, but finding the right APIs to use seemed difficult.

Having the VS Code IDE features was essential, but using the editor itself as a presentation tool didn't seem like the right way to go. But how would we demonstrate the tooling without VS Code? The cool thing about the JavaScript ecosystem is that there is a ton of open source libraries available that you can mash together with relative ease to create something new.

I believe being in the consultant’s role, even for a short period improves one’s professionalism.

Toward the solution

The editor of VS Code is a separate component called Monaco. Monaco can be run in the browser and contains the TypeScript language service as well. The language service checks the code for syntax and type errors and shows the errors in the editor. It also powers the Intellisense in Monaco.

With npm install monaco react it proved possible to create a slideshow that also displays a code editor. The code can be modified and we could show all the neat stuff that TypeScript tooling offers. I wanted a way to easily edit the slides and ended up writing the slides in Markdown. The presentation program would use Electron so that it could read our Markdown slides from the filesystem without having to write a web server for it.

With Flexbox, creating a basic slideshow wasn't difficult. Navigating between slides is done with CSS transforms. Unfortunately, Monaco needed some workarounds. The multiple editors in the presentation conflicted with each other since they contained variables with the same names. The non-visible editors needed to be removed to fix the issue.

The finished presentation software looked nice and fulfilled my requirements. As a programmer, writing slides in Markdown was a much nicer way to make a presentation than with PowerPoint. You can just throw the slide markup into git, no worrying about emailing the presentation, or versioning as typescript_basics_final_v3_really_final.pptx.

Going the extra mile

I did start thinking about the errors though. The editor displayed a nice red squiggly line under the error location, but required the user to hover over it to show the error message:

At Wunderdog, it’s also the incredible colleagues who make the days meaningful.

This seemed like the kind of thing to cause some minor issues during the presentation: "Hey, could you show the error on line 2 really quick? And now the one on line 4?". Not a big problem, but the error messages should really be visible all the time.

Monaco supports line "decorations", allowing you to add CSS classes for specific lines. With decorations and the TypeScript compiler, it was possible to show compilation errors after the line the error comes from:

Now the audience could see the compilation errors without me or tunkki having to point at things!

Having fun with it

With all these nice little features the presentation seemed complete and we could get on with planning with the contents of the presentation. But then we discussed about how to explain the difference between compile-time and runtime to the audience. In a language like Java, the difference between runtime and compile-time is not quite as stark as it is with TypeScript. TypeScript interfaces, unlike for example Java classes, are purely a compile-time construct. They're a linter on steroids using a special syntax. You can't see any trace of them in the generated JavaScript. We wanted to showcase this by showing the compiled output. Fortunately, this was not difficult, as the TypeScript compiler provided a simple transpileModule function that transformed a TypeScript string into JavaScript. The presentation editor now had a tab that showed the compiled JavaScript:

Another aspect of the compile/runtime separation is the (type) unsafety of some TypeScript constructs. For example, the any type allows you to turn off the type checker and do any horrible thing you could do with JavaScript:

Having the values of variables and other expressions visible would be valuable when trying to demonstrate how execution differs from compilation. Eventually, I figured out a hacky way to execute specific parts of the code, and show the results inline, as with errors:

With all of these features implemented, it felt easy to edit the slides and to use it during a presentation. We could confidently display the advantages of TypeScript and also show the language's peculiarities. It was nice to see that making something fit for a very specific purpose can be a real asset, and not as difficult as one might think. Of course, none of this would have been possible without the Open Source TypeScript ecosystem and the great engineering Microsoft has done with TypeScript.

We will definitely be using this tool in our future TypeScript sessions. We're already planning the next one!
